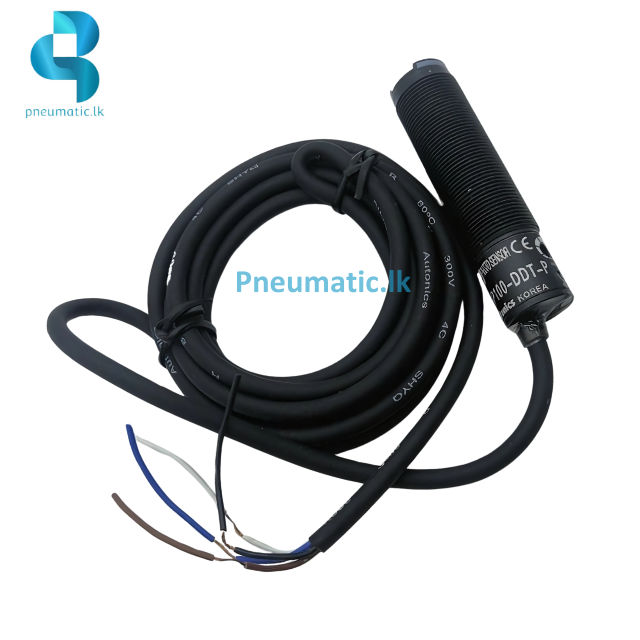

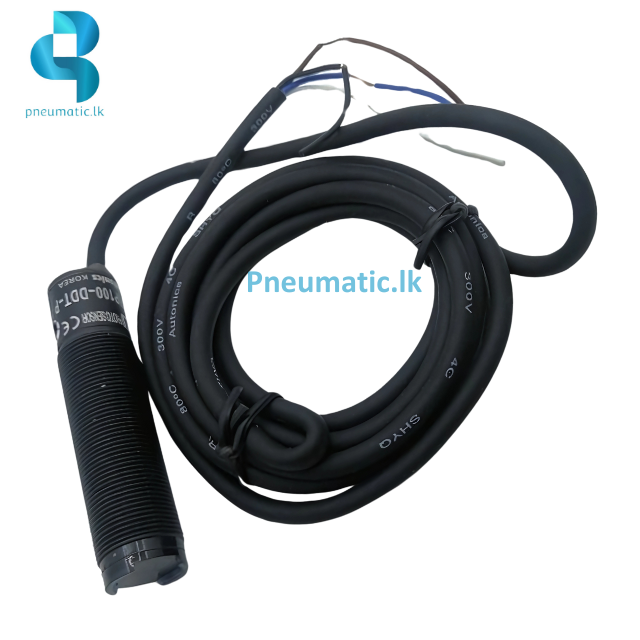

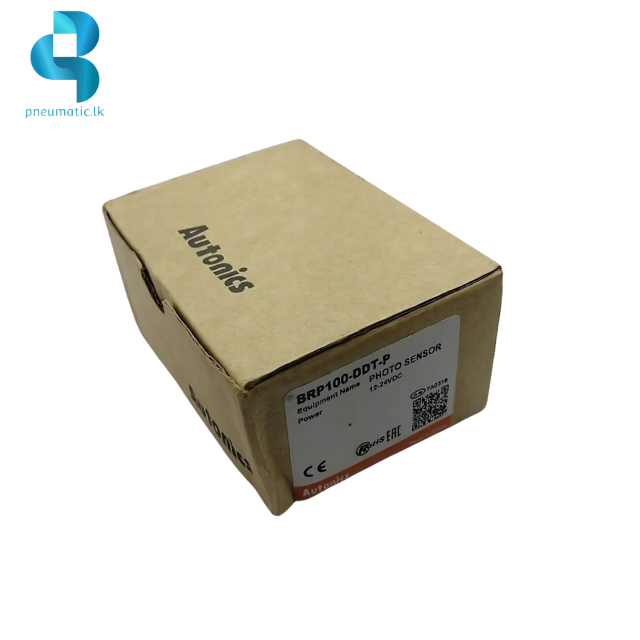

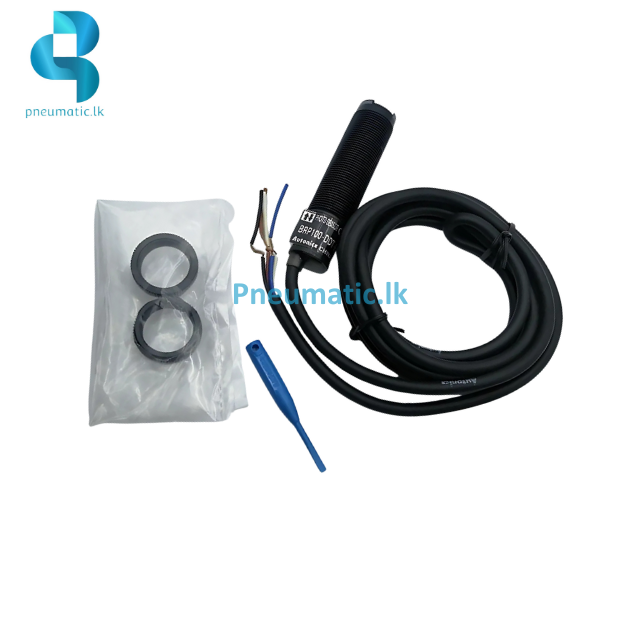

Autonics Model | BRP100-DDT-P | Photoelectrical Sensor

Autonics Model | BRP100-DDT-P | Photoelectrical Sensor Type: Photoelectric sensor Sensing Method: Diffuse reflective (no reflector needed) Sensing Distance: 100 mm Sensing Target: Opaque & translucent objects Light Source: Infrared LED Power Supply: DC 12 – 24 V Output Type: PNP open-collector Operation Modes: Light-ON / Dark-ON selectable Response Time: ≤ 1 ms Current Consumption: Up to ~30–45 mA Connection: Pre-wired cable (~2 m) Indicator: LED switching indicator Protection: IP66 protection rating Housing: Cylindrical body (≈ M18 type) Ambient Temp (Operating): -10 °C to 60 °C Ambient Humidity: 35 – 85 % RH Application: Object detection, automation, conveyors, packaging, presence/absence sensing If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
