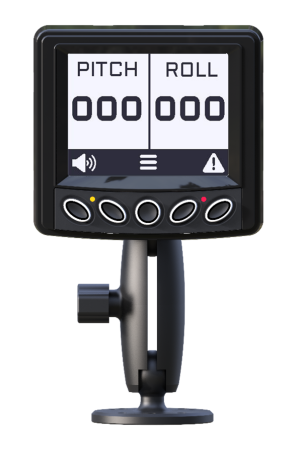

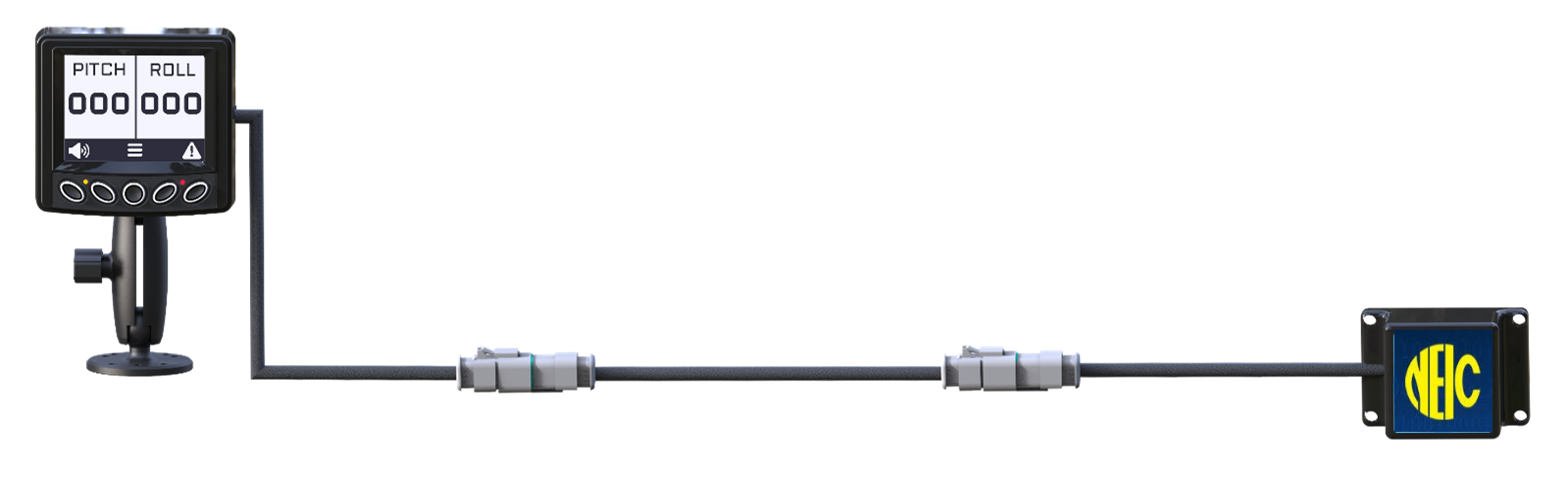

Description Dual Axis Inclinometer p/n NEIC1001 NEIC’s Dual – Axis Inclinometer provides configurable pitch and roll measurements via an industrial grade, transflective monochrome display for superior visibility. Tough & Rugged Designed with harsh industrial environments in mind, the display is encased in a rugged, weatherproof fascia, with an adjustable gimbal mount for optimum positioning for operators. Customisability The integrated keypad allows for easy customisation of the display settings including warning and alarm setup, minimum and maximum tilt range and sensor customisation. Warnings & Alarms Integrated Alarm and Warning Outputs provide a switched, low side signal. Both Warnings and Alarms can be configured to be normally on or normally off outputs. Password Protected Password protection on the display menu can be configured by the user. Specifications Dual Voltage – 12V or 24V Accuracy: 0.05 degrees Range: /- 90 degrees Resolution on Display: 0.1 degrees IP67 Rated both Display and Sensor Kit Includes 1 x 4’’ Display 1 x Dual Axis Sensor 1 x 15m Cable 1 x Adjustable Ram Mount Key Features 2 x N.C or N.O Outputs Password Protected Menu Customisable Settings Rugged IP67 Exterior Optional Extras 5 m Extension Cable Additional Sensor Mini Siren Alarm
