Oceanus AQM-09 Air Quality Monitoring Station Multi Gas PM2.5 PM10 TSP Weather Sensor Solar Powered Factory Residential Air Monitor

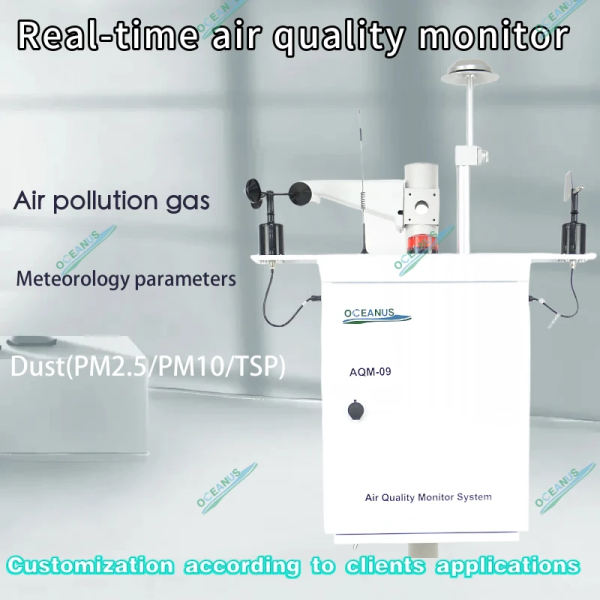

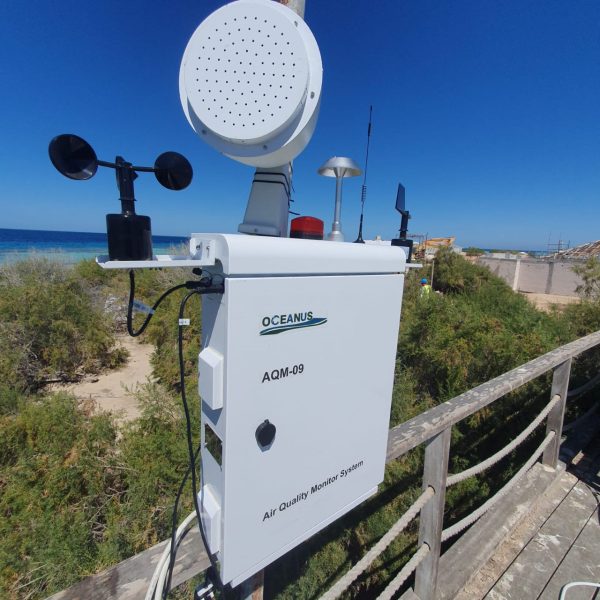

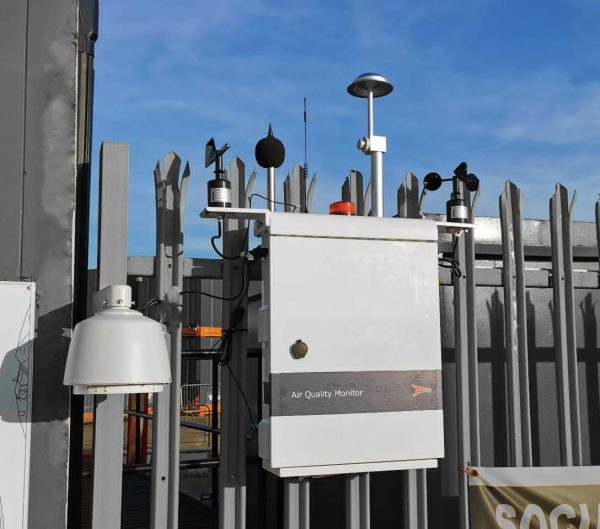

Description AQM-09 Air Quality Monitor What is the AQM-09 Ambient air quality monitor station? AQM-09 air quality monitoring system used to detect the pollutant gases(SO2, CO, NO2, O3, CO2, TVOC, etc.) Particulate matter PM1, PM2.5 and PM10, TSP, Noise, Meteorological parameters (Temperature, Humidity, Wind speed, Wind direction, Barometric pressure, rainfall, solar radiation). Combined with industrial imported sensor technology and unique heating dehumidification compensation device to make sure data accuracy. Features: Installed with the famous brand sensor, with quick response, good linearity, stable performance and high resolution, the minimum unit up to ppb; Designed with the all-in-one type and easy installation; The modular design makes the later maintenance very convenient; With the function of remote parameter correction, can save the costs; With the built-in pump, respond quickly more than the normal diffusion sampling type; With the Double-layer protection box, preventing it from external environment influence; It’s with the Wireless network adapter, transmitting the data by GPRS, also with optional RS232 connection to display the data on the LED display screen; With the Remote data acquisition system. The Air quality monitor station with many different applications: Pollution control in traffic environment; Road and tunnel pollution monitoring; Urban air quality monitoring; Emission monitoring of particulate and pollution sources; Long-term air quality trends analysis; Short-term atmospheric environmental impact assessment; Environmental monitoring in residential areas, schools, Hospitals; Park / forest environmental monitoring; Industrial area air quality monitoring: Chemical plant, Power plant, Landfill, Incineration station, Port, Sewage treatment plant, Storage facilities, Underground facilities, etc. About us We Henan Oceanus is located in Henan, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of Gas detection system and Environment equipments since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global marketing.With excellent products and services, Henan OCEANUS Import and Export Co., Ltd.’s gas detectors and air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise. 01. Business areas As a leader in the field of Gas detector and Air quality monitor system, we Henan Oceanus will be continued to expand its business scope and provide customers around the world with customizable Air quality monitor system of various types and specifications. 02. Values and ideas Our company upholds the core values of integrity and quality service, focusing more on friendship with our customers. We always adhere to integrity management, customer-centered, and provide a full range of pre-sales, sales, and after-sales services to ensure that customers can be worry-free when using our products. 03. Global Service Network We have a comprehensive global service network, offering timely, professional pre-sales consultation, after-sales service, and technical support for overseas users. Regardless of where users are located, they can enjoy our attentive and thoughtful service. 04. Customer Service With excellent products and services, Henan Oceanus Gas detector and Air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise. Our After-sales service: 1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc. 2. Free calibration service and provide calibration methods. 3. One year warranty and lifetime warranty Our Service Processes: Pre-sales Consultancy Confirmation of order Production Multi-Channel Shipping After-sale Services Technical Parameter: Items Description Specification Particle Modules Monitor method Continuously, automatically and real-time Working principle Light scattering technique Measurement data PM2.5, PM10，TSP Measuring range 0~1000ug/m3    (Range can be extended) Response time ≤60s Measuring time 0.1min (Shortest measurement time) 1min(Standard measurement time) Minimum detection limit ≤0.001 mg/m3 Instrument parallelism ≤±10% Data validity ＞75% Dehumidification With the automatic dehumidification function module Alarm function With high concentration alarm function, the platform can configure the alarm threshold Gas modules Monitor method Continuously, automatically and real-time Working principle High precision Electrochemical sensor Gas monitor SO2, NO2, CO, O3 Sulfur Dioxide SO2 Measuring range: 0~2000ppb Resolution: 1ppb Response time: ＜45s Nitrogen Dioxide NO2 Measuring range: 0~2000ppb Resolution: 1ppb Response time: ＜45s Ozone O3 Measuring range: 0~2000ppb Resolution: 5ppb Response time: ＜45s Carbon Monoxide CO Measuring range: 0~200ppm Resolution: 0.1ppm Response time: ＜45s Noise monitor Measuring range: 30~130dB (A) Sampling frequency: ＜1s Dynamic analysis range: ≥100dB (A) Frequency weighting: A, C,Z Time weighting: F, S Meteorological parameters Temperature: Measuring range: -30℃~60℃, Precision: ±0.3℃ (20℃) Humidity: Measuring range: 0~95%RH, Precision: ±5%(5%RH~95%RH, 25℃) Wind direction: Measuring range: 0~360°, Precision: ±5° Wind speed: Measuring range: 0~60m/s, Precision: ±0.3m/s Barometric pressure: Measuring range: 600~1110hpa, Precision: ±0.5hpa System specification: Data efficient transmission rate ≥95% Remote control Support for remote setting Interface RS485/RS232 port, Network port Transmission network Automatically and real-time upload data, optional 4G/GPRS Box material Q235 spray, Stainless box optional Scaffold material Q235 Scaffold height Standard height is 4.5m, Flange connection(1m fixed underground, 2*1.5m 1*0.5m) Lightning arrester Length 1.5~2m,  Q235 Galvanized material Working environment Temperature: -20~50℃ Humidity: 5%RH~95%RH Pressure: 65~108Kpa Protection grade IP55 Power supply AC220V/50Hz/Solar power (optional) How To Cooperate With Us? We Henan Oceanus is located in Henan, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of advanced environmental monitoring equipments since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global marketing. Our address: No. 2206, Wenhua Chanye Building Block B, No. 77, Shangding Road, Zhengzhou Area, Henan Pilot Free Trade Zone Email: [email protected] Telephone: 86 0371 60998169 Mobile/Whatsapp: 86 15981942832 Mobile/Whatsapp: 86 13673683950
