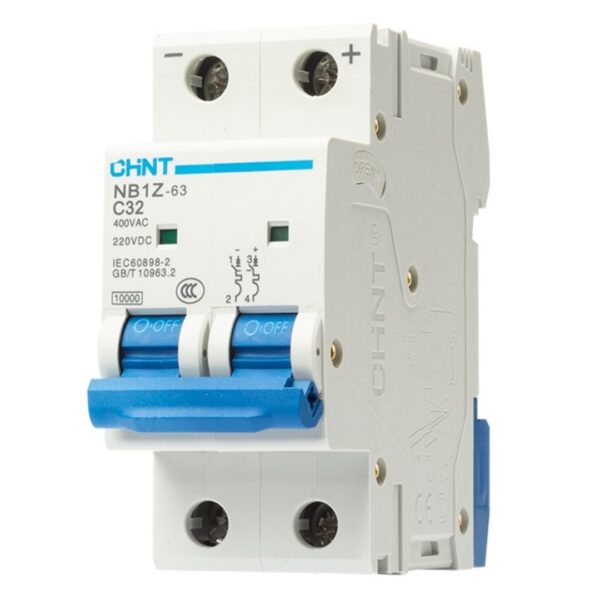

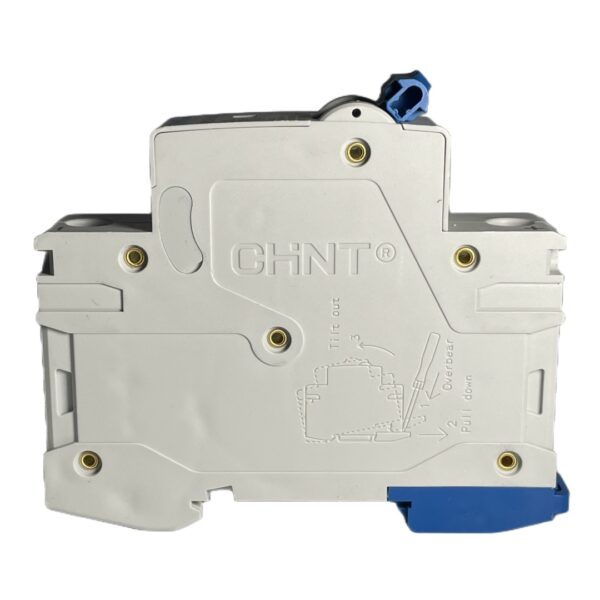

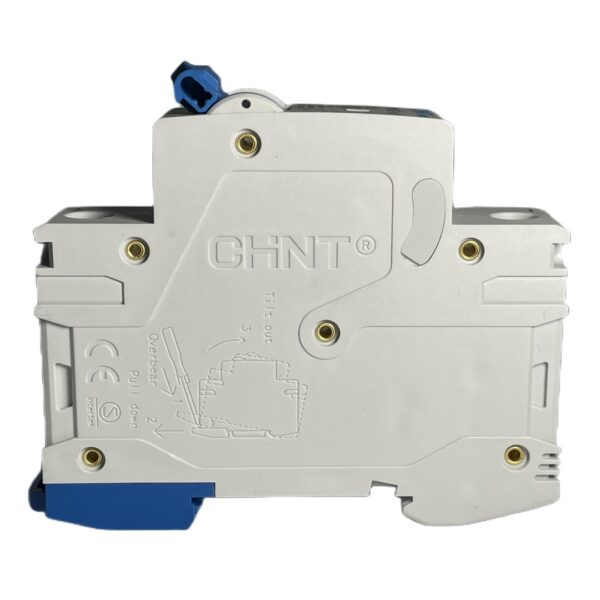

Chint NB1Z-63 AC DC MCB 6kA 10kA 1P 2P 6A 10A 16A 20A 25A 32A 40A 50A 63A 12V 24V 48V 60V 110V 220V CHNT DC Mini Circuit Breaker

Description Place of Origin : China Brand Name : Chint Model Number : NB1Z-63 Breaking Capacity : 6kA, 10kA Rated Voltage : 220VDC, 230/400VAC Rated Current : 1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63A BCD Curve : B, C, D Type : MCB, used both for AC and DC circuit Rated Frequency (Hz) : 50/60Hz Number of Pole : 12 Protection : LSI Chint NB1Z-63 AC DC MCB 6kA 10kA 1P 2P 6A 10A 16A 20A 25A 32A 40A 50A 63A 12V 24V 48V 60V 110V 220V CHNT DC Mini Circuit Breaker   Description:   NB1Z-63 AC/DC miniature circuit breaker is for the line with voltage no more than DC 220V or AC 230/400V. The rated current region is from 1~63A. It s major function is to protect the line from over load and short circuit. It is widely used in industrial, commerical, high building, and private home etc. It is high quality which meet the IEC60898-2 standard.   Specification: Model: Chint NB1Z-63 Rated value (V): 1P: AC230/400,DC220; 2P:AC400, DC220 Rated current(A): 1,2,3,4,6,10,16,20,25,32,40,50,63 Poles: 1P, 2P Breaking Capacity: 6KA Tripping type: B, C Mechainical life: 20000 times Pollution level: class 2 Protection level: IP20 Standard: IEC 60898-2
